Anhängerfahrgestell A 1, einachsig, zerlegbar





Fgst_A1_DLuftT8204





The Anhängerfahrgestell A 1, einachsig, zerlegbar - trailer chasis A 1, one-axled, collapsible - of the Luftwaffe was used as chassis for different superstructures. The chassis had a weigh of 140 kg and had a load capacity of 610 kg. The A 1 chassis was used for following trailers:

Anhänger (1 achs.) für Abwurfwaffen - trailer (one axled) for bombs
CO2 Löschgerät - CO2 extinguisher
Elektro-Maschinensatz II - electrical generator sets II
Elektro-Maschinensatz III - electrical generator sets III
Fasstransportanhänger - barrel transport trailer
Flader-Anlassgerät - Flader-starter
Komet Luftschaumspritze (LS II - Va) - Komet foam fire engine (LS II - Va)
Kühlmittelwärmewagen mit Handbetrieb - cooling liquid warmin wagon with manual operation
Motorenanwärmer 38 - engine pre-heater 38
Ölanwärme- und Reinigungsgerät - oil pre-heating and cleaning device
Öltankwagen mit Handbetrieb - oil tank wagon with manual operation
Tankgerät 250, fahrbar - refueling device 250, movable
Tankspritzenanhänger (TS Ah 2,5a) - fire tanker-wagon trailer (TS Ah 2,5a)
Tragkraftspritzenanhänger 8 Bauart 1939 - portable pump trailer 8 model 1939
Troganhänger - trough trailer
Waldbrandgerätewagen-Anhänger (WB Ah) - forest fire equipment vehicle trailer (WB Ah)
Anhänger (A1) 0,5t, offen (Anh. 310) - trailer (A1) 0.5 tons, open
Anhänger (1-achs.) für Feldfernkabel (Sd. Ah. 25) - trailer (one axled) for field remote cable
Anhänger (1-achs.) für Maschinensatz F (Sd. Ah. 25/1) - trailer (one axled) for machine set F
Anhänger (1-achs.) für Nachrichtengerät (Sd. Ah. 25/2) - trailer (one axled) for signals equipment
Beleuchtungsanhänger N (1-achs.) (Sd. Ah. 25/3) - illumination trailer N (one axled)
Nachschubanhänger (1-achs) (Sd. Ah. 25/4) - supply trailer (one axled)
Peilanhänger (1-achs.) (Sd. Ah. 28) - bearing trailer (one axled)
Wassertankanhänger (1-achs.) Sd. Ah. 413) - water tank trailer (one axled) (Sd. Ah. 413)

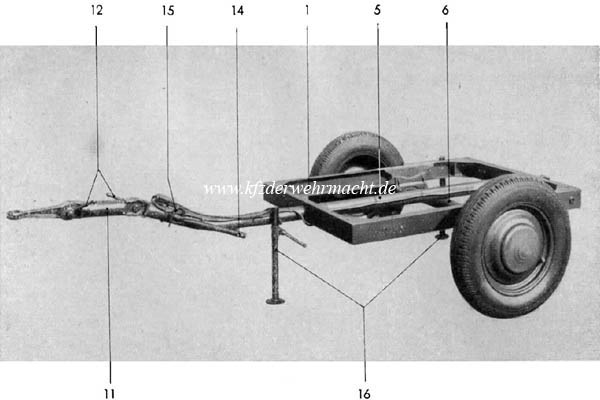

(Image from D. (Luft) T. 8204)











- - - - - - - - - - - - - - -
