Anhänger (1 achs.) (Sd. Ah. 31) &
Anhänger (1 achs.) (Sd. Ah. 31/1)





SdAh_31_125_ID_Neg_HE

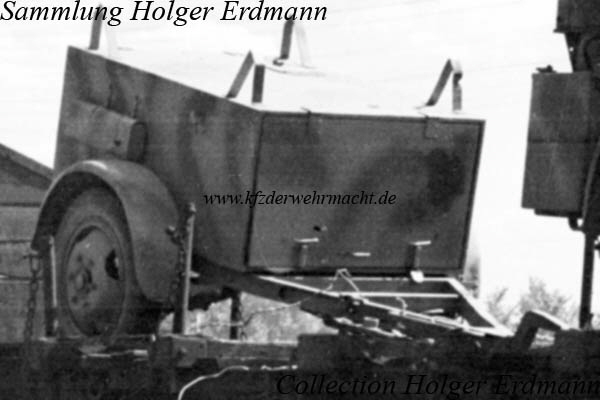

The Geschlossene Aufbau für Munition auf Anhängerfahrgestell (1 achs.) 900 kg (Sd. Ah. 31) – closed superstructure for ammunition on trailer chassis (1 axle) 900 kg (Sd. Ah. 31) – was most probably developed in 1941 and introduced early in 1942. Primarily, it was used for transportation of the 7.5 cm ammunition of the Pak 40 and Pak 41.











SdAh_31_Terlisten_via_Hoppe_02

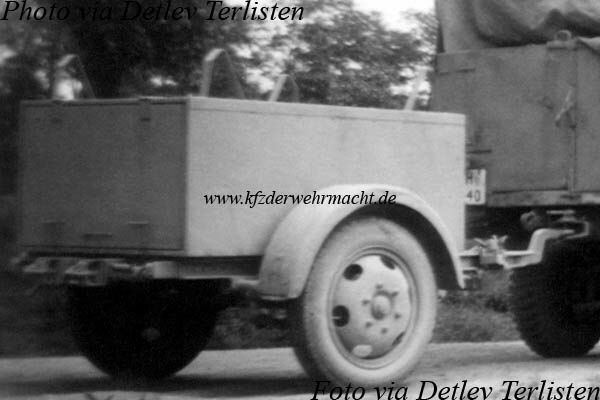

The Geschlossene Aufbau für Munition der 7.5 cm Sturmkanone 40 auf Anhängerfahrgestell (1 achs.) 900 kg (Sd. Ah. 31/1) was exclusively used for transportation of the ammunition of the 7.5 cm Sturmkanone 40. 64 rounds without cases could be stored in the Sd. Ah. 31/1 which was identical to the Sd. Ah. 31, outwardly.











SdAh_31_D691-22

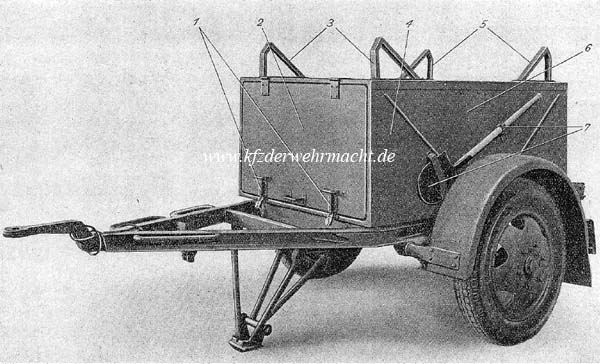

This image originates from D 691/22 (equipment description and loading plan). According to the loading plan, ammunition of several guns and mortars could be stored in the Sd. Ah. 31. 1: clasps for front hatch, 2: front hatch, 3: stop bracket for front hatch, 4: box, 5: stop bracket for rear hatch & 7: holders for spade.











- - - - - - - - - - - - - - -
