Anhänger (2 achs.) für 30 m Kurbelmast (Sd. Ah. 127)





SdAh_127_1942_HE

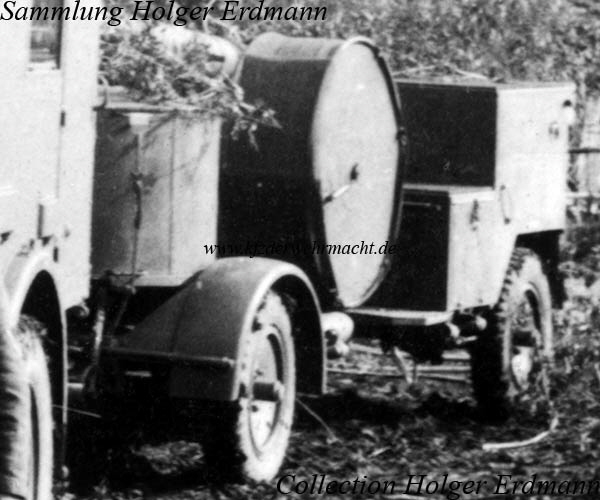

The Anhänger (2 achs.) für 30 m Kurbelmast - trailer (two-axle) for 30 m radio mast (Sd. Ah. 127) was used for transportation and errection of a 30 m Kurbelmast - 30 meter extendable radio mast. Antenna systems of the Dezimetergeräte - UHF systems - Fu.G. 02, 03, 05 and 06 could be mounted to the head of the radio mast.











SdAh_127_Bahnverladung_29_5_42_HE

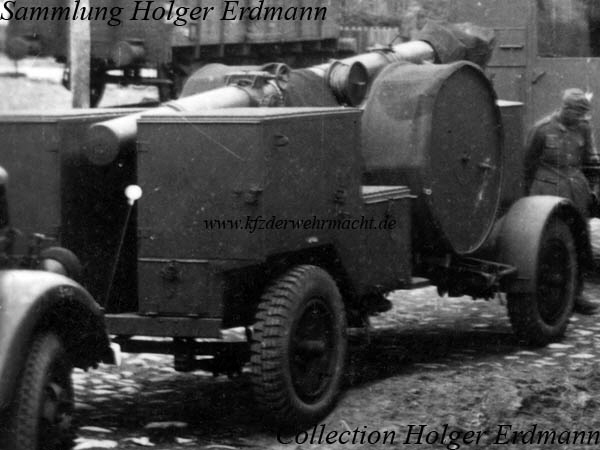

The Sd. Ah. 127 were used by the schwere Dezimezer-Funk-Kompanie - heavy UHF radio companies - 1 to 6 and 647, each company had twelve trailers. Observe the 30 m Kurbelmast which was transported in lying position which is clearly visible in this photo. In the drums on both sides of the Sd. Ah. 127 each 45 meters of Styroflexkabel - Styroflex cable - was carried along. The radio mast head of the Fu.G. 03 Stuttgart was transported in the cylindrical box on the forward area of the trailer..











SdAh 127 Mast-Anhänger, Dezi-Funk-Kp 4-647, 1944 nahe Flensburg, Georgens via Hoppe





A Sd. Ah. 127 during the errection of the 30 m Kurbelmast. Observe the ducts for the Styroflexkabel to both sides of the radio mast.











- - - - - - - - - - - - - - -
