VOMAG Type 5 LR 444 / 644 / 448 / 648

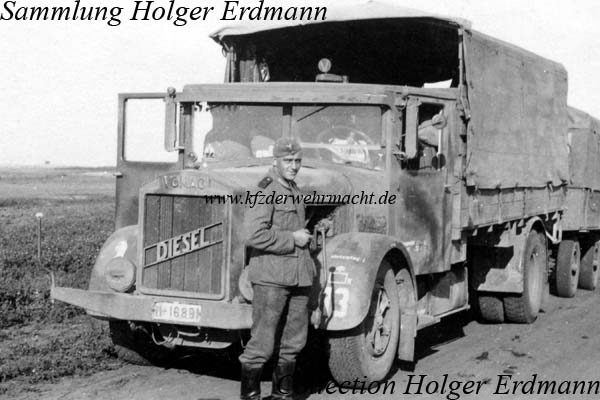

VOMAG_5_LR_4Zyl_5t_Lkw_Werkstattwagen_PiBtl24_24_ID





The VOMAG type 5 LR had a payload of 5 tons. It was propelled by a 100 HP 4 cylinder diesel engine of the type 4 R 3080. The shown vehicle was used as workshop lorry by Pionier Bataillon 24 of 24. Infanterie Division.

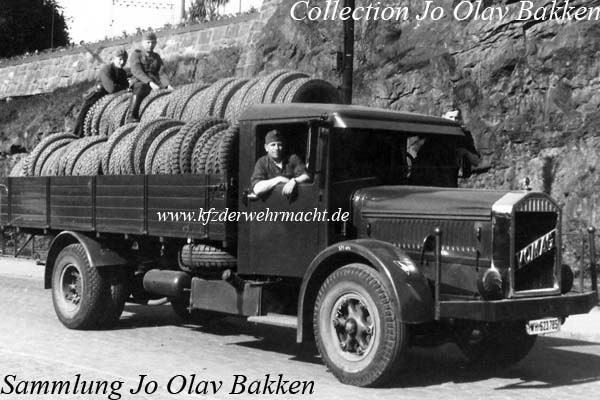

Vomag_5LR_448_1941_Bakken





This VOMAG 5 LR 448 had the radiator grille which was introduced in 1938/39. The vehicle had a Wehrmacht number plate but had not received a camouflage finish. Note the load of tyres of different sizes and tread patterns.

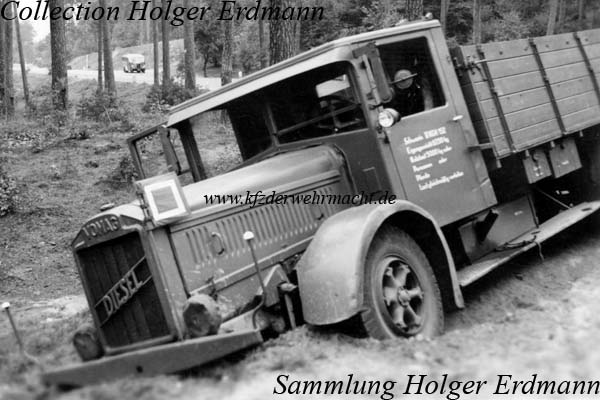

Vomag_5_LR_der_WL_abgerutscht_02





Optionally, the VOMAG type 5 LR could be ordered propelled by the stronger 6 cylinder engine type 6 R 1060 which had a power of 110 HP. The vehicles with the stronger engine had a longer engine bonnet. The angular lower border of the side plate of the engine bonnet is clearly visible. The side plate of the engine bonnet of the larger VOMAG type 6 LR was rectangular.

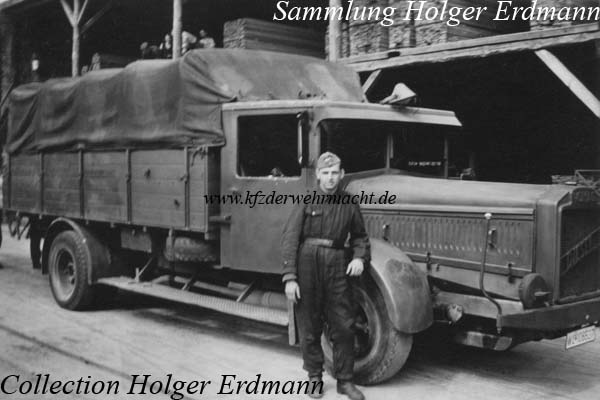

VOMAG_5_LR_Juli_1942_WL-106537





Vehicles, which were especially produced fort he Wehrmacht, are identifiably by the footboards which were lengthened to the rear fenders. The types 5 LR 444 and 644 had a shorter wheelbase for the purpose as dumper. This VOMAG type 5 LR 648 (normal wheelbase) of the Luftwaffe was photographed in July 1942.











- - - - - - - - - - - - - - -
