Büssing-NAG express lorries type “Burglöwe”
|
|
|
|
|
|
|
|
After the fusion of Büssing with NAG to Büssing-NAG in 1930, the NAG express-lorry series was adopted to the joint lorry programme of Büssing-NAG. Originally, the type designation was a two-digit number (e.g. Büssing-NAG type 15). In 1932 it was changed to a three-digit number (now Büssing-NAG type 150) caused by the introduction of the type 275. Vehicles with long wheelbase had an additional L in the type designation. Beginning in 1934, these vehicles were also offered propelled by a diesel engine. These vehicles got an additional D for diesel engine. Beginning in 1935, the express-lorries propelled by a petrol engine got the epithet Burglöwe.
The revised express-lorry programme was offered beginning in 1935/36. The vehicles had a modernised radiator grille. The inter-types had been ceased. In 1937/38, the express-lorries were modernised once again. The engine bonnet was changed to the modern type with the typical Büssing-Spider which was designed by Neumann-Neander. In total, 16,296 vehicles of all types were manufactured. These number contains a part of the procution of the articulated lorry type DS.
|
|
|
|
|
|
|
|
|
Year of construction:
|
Payload in MT:
|
|
|
|
Büssing-NAG type 15, as of 1932 type 150, as of 1934 type 150 D, as of 1935 type 150 Burglöwe
|
1931-1936
|
1.5
|
|
|
|
Büssing-NAG type 20, as of 1932 type 200, as of 1934 type 200 D, as of 1935 type 200 Burglöwe
|
1931-1936
|
2.0
|
|
|
|
Büssing-NAG type 25, as of 1932 type 250, as of 1934 type 250 D, as of 1935 type 250 Burglöwe
|
1931-1936
|
2.4 - 2.5
|
|
|
|
Büssing-NAG type 30, as of 1932 type 300, as of 1934 type 300 D, as of 1935 type 300 Burglöwe
|
1931-1936
|
3.0 - 3.6
|
|
|
|
Büssing-NAG type 275, as of 1934 type 275 D, as of 1935 type 275 Burglöwe
|
1932-1936
|
2.75
|
|
|
|
Büssing-NAG type 260, as of 1934 type 260 D, as of 1935 type 260 Burglöwe
|
1932-1937
|
2.6
|
|
|
|
Büssing-NAG (type 1,5) 15 Burglöwe
|
1936-1938
|
1.5
|
|
|
|
Büssing-NAG (type 2) 20 Burglöwe
|
1936-1939
|
2.0
|
|
|
|
Büssing-NAG (type 2,5) 25 Burglöwe
|
1936-1938
|
2.5 - 2.7
|
|
|
|
Büssing-NAG 30/300 Burglöwe
|
1936-1939
|
3.0
|
|
|
|
|
|
|
|
|
|
|
|
|
The Büssing-NAG type 15/150 Burglöwe was the smalles vehicle of the series. It is identifiable by the single tyre arrangement on the rear axle.
|
|
|
|
|
|
|
|
|
|
|
|

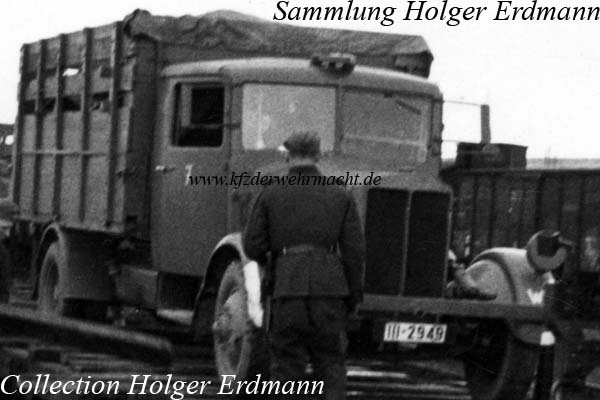

With the illustrated design of the radiator grille, the Büssing-NAG express-lorries were made from 1931 to 1936. The driver’s cab indicates a late series vehicle. The shown lorry is most probably a Büssing-NAG type 250.
|
|
|
|
|
|
|
|
|
|
|
|

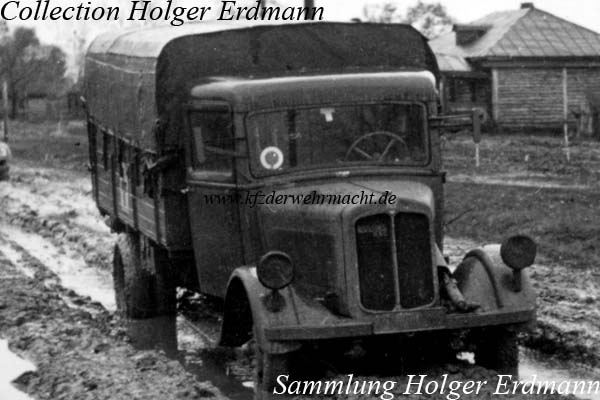

This is a nice frontal view of a Büssing-NAG type 2.5/25 Burglöwe on a muddy road in Russia. Observe the radiator grille introduced in 1935. The vehicle was propelled by either a diesel engine or a petrol engine with a power of each 65 HP.
|
|
|
|
|
|
|
|
|
|
|
|

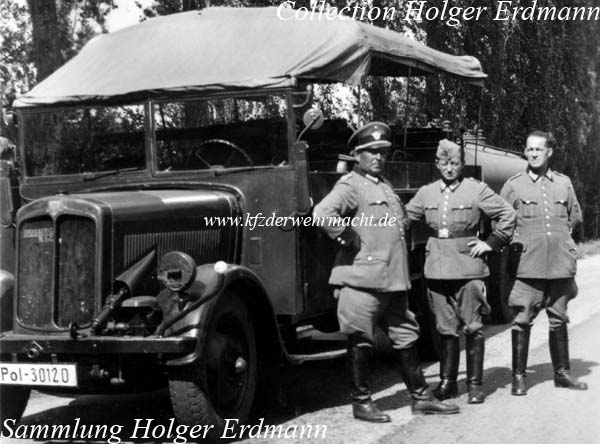

Based on the Büssing-NAG Burglöwe, police vans were manufactured, too. The exposed lower part of the steering column was typically for the Büssing-NAG express-lorries. The illustrated vehicle also had the modernised radiator mask introduced in 1935/36.
|
|
|
|
|
|
|
|
|
|
|
|

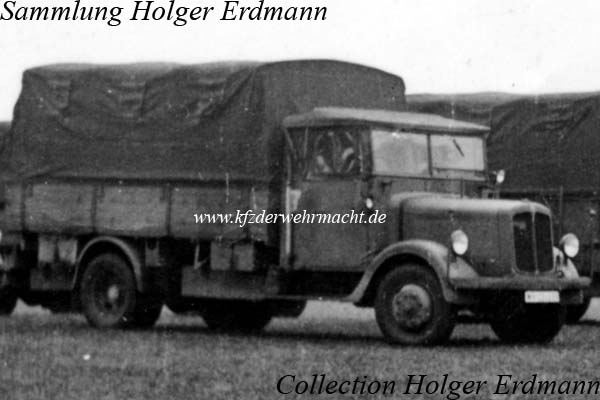

The modernised version of the 3 ton lorry was introduced in 1936, too. Primarily, the radiator grille had been redesigned. This Büssing-NAG type 30/300 Burglöwe had the open standard driver’s cab of the Wehrmacht. But this type was produced for the Wehrmacht only in small numbers.
|
|
|
|
|
|
|
|
|
|
|
|

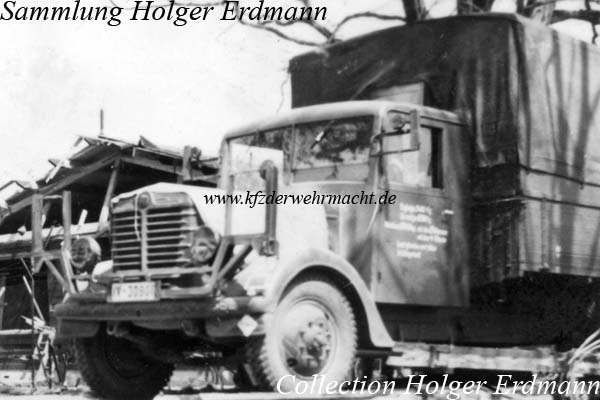

To integrate the express-lorries to the offer of Büssing-NAG in a better way, the new radiator grille with the Büssing-spider was adopted between 1937 and 1938. This formerly civilian vehicle had a widened platform and racks at the front of the vehicle used for the transportation of long materials.
|
|
|
|
|
- - - - - - - - - - - - - - -
|
|
|
|
