Büssing-NAG Type 500 A

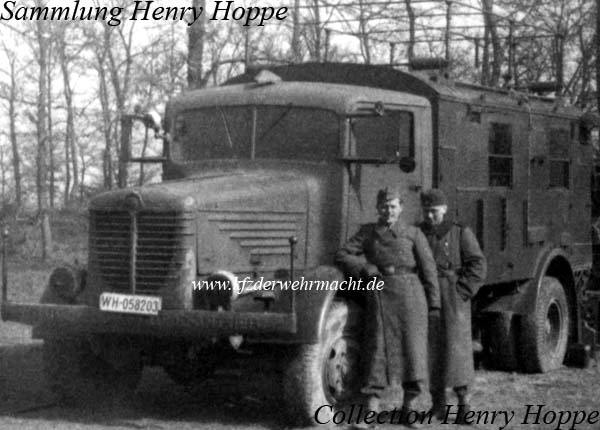

Büssing-NAG 500 A Koffer Funk, WH-058203, Hoppe





The Büssing-NAG type 500 A was developed as type 454 beginning in 1939. It was made in small numbers from late 1940 to 1942. Contrary to the Büssing-NAG type 500 S – which had 7 louvers – the Büssing-NAG type 500 A had initially 4, later 5 louvers in the side plates of the engine bonnet.











Büssing-NAG 500 A mit Bilstein-Kran, Anderson





Further distinguishing marks to the Büssing-NAG type 500 S were the engine bonnet, which ascended clearly towards the driver’s cab and the split, narrower side plates of the engine bonnet. The label BÜSSING-NAG ALLRAD ANTRIEB – which means Büssing-NAG all wheel drive – was coined into the bumper. This Büssing-NAG type 500 A with Bilstein crane (Kfz. 100) belonged to 15. Panzer Division.

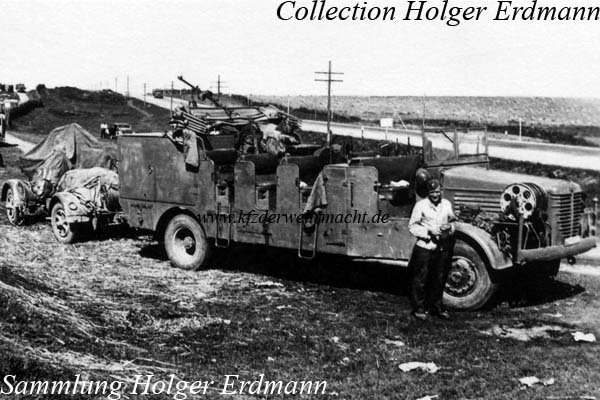

Büssing_NAG_500_A_FlakmesstrKw_Kfz_415_&_KdoGer_36





This Büssing-NAG type 500 A is a Flakmesstruppkraftwagen – anit aircraft survey party motor vehicle - (Kfz. 415). The superstructure was similar to the superstructure of the m. Flakmesstruppkraftwagen (Sd. Kfz. 7/6). A Kommandogerät 36 – command device – was carried on the trailed Sd. Ah. 104.

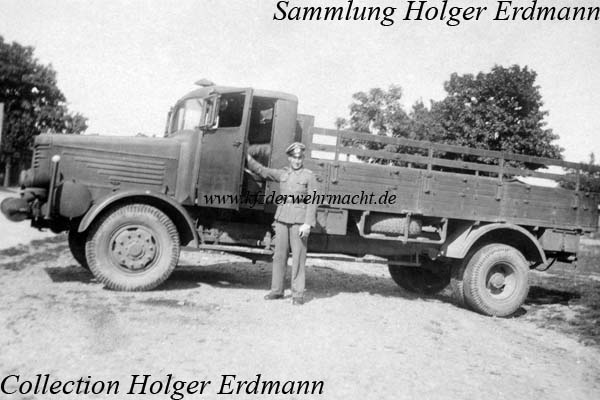

Büssing_NAG_500_A_mit_Holzgasgenerator_Gefr_Bürkle





This Büssing-NAG Type 500 A is unusual. It was equipped with a wood-gas device. Normally, only two wheel driven vehicles were equipped with such devices.











- - - - - - - - - - - - - - -
