Großer Drucklufterzeuger 34 als Anhänger (1 achs.) fahrbar





gr_Drucklufterzeuger_34_D600

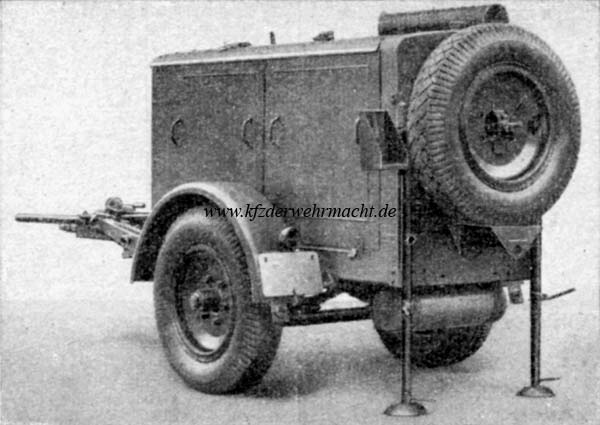

The großer Drucklufterzeuger 34 als Anhänger (1 achs.) fahrbar – large air compressor 34 as trailer (1-axled) movable – replaced older construction beginning in the mid 1930s. There were two variants, one made by the company Flottmann and one made by FMA. The different requisition numbers indicate differences in construction. (Image from D600)











Großer_Drucklufterzeuger_34_als_Ah_unter_Pi_Brücke

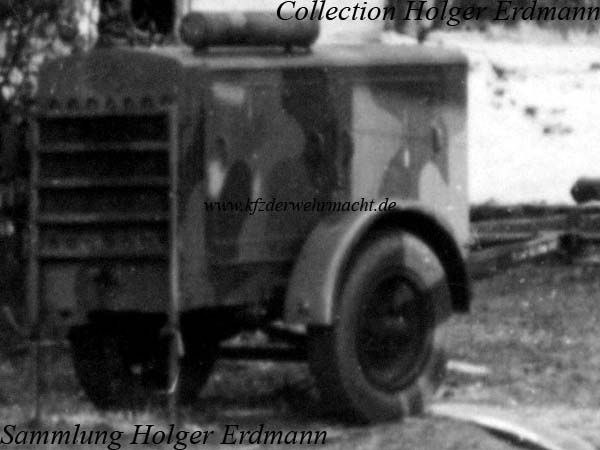

The große Drucklufterzeuger 34 had an air tank with a capacity of 200 litres. The air compressor was propelled by a 8.8 litres engine with a power of 39 HP. With the fuel reserve of 45 litres, the air compressor could operate up to 6 1/2 hours.











Großer_Drucklufterzeuger_34_als_Ah_fahrbar_PiMaschZug_531

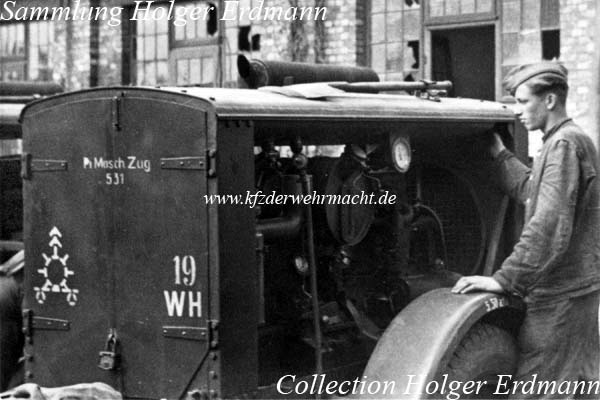

The große Drucklufterzeuger 34 als Anhänger (1 achs.), fahrbar was used by  engineer and maintenance units. The shown große Drucklufterzeuger 34 belonged to Pionier Maschinen Zug 531.











- - - - - - - - - - - - - - -
