Motorenanwärmer, fahrbar
(Einbrennergerät; B-Reihe mit Zweiachsfahrgestell)





Vorwärmgerät_Anderson

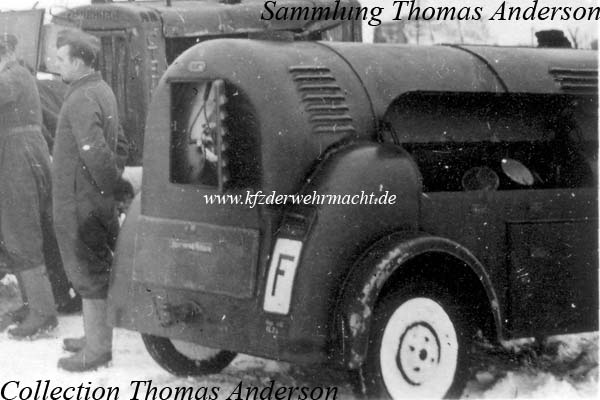

The Motorenanwärmer, fahrbar (Einbrennergerät; B-Reihe mit Zweiachsfahrgestell) – a movable engine pre-heater (one burner device; B-series with two axle chassis) – of the Luftwaffe was used to heat up aircraft engines. Behind the opened rear hatch the burner nozzle is visible. The spare wheel and the battery was stored behind the broad hatch below. A fire extinguisher was placed behind the hatch labelled with a large “F”. The right exhaust nozzles can be seen because the side hatch is opened.











Motorenanwärmer, fahrbar, Hoppe

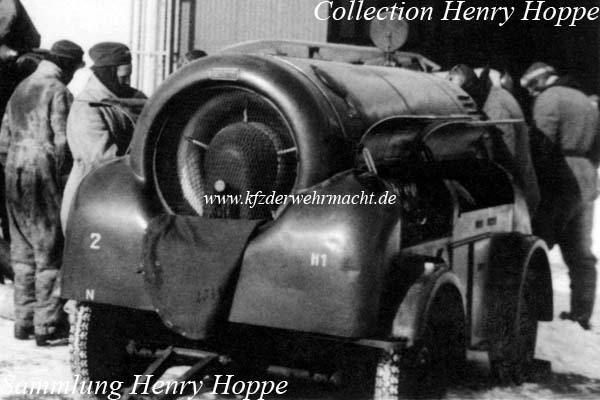

The blower of the Motorenanwärmer, fahrbar is clearly visible on this photo. Behind the first opened hatch, the panel was located. The left exhaust nozzles were located behind the other opened hatch.











Motorenanwärmer_ohne_Abdeckung

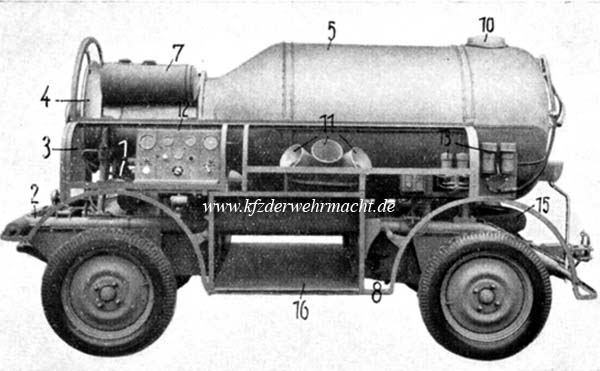

The left side of the Motorenanwärmer, fahrbar without its casing. 1: two stroke engine, 2: chassis, 3: driving belt for the blower, 4: blower, 5: air heater, 7: fuel tank, 8: heating fuel tank, 10: chimney, 11: exhaust nozzle, 12: panel, 13: apparatus supporter, 15: spare wheel & 16: hose case.
(Image from: Vorläufige Beschreibung und Bedienungsvorschrift, February 1941)











Fgst_Motorenanwärmer

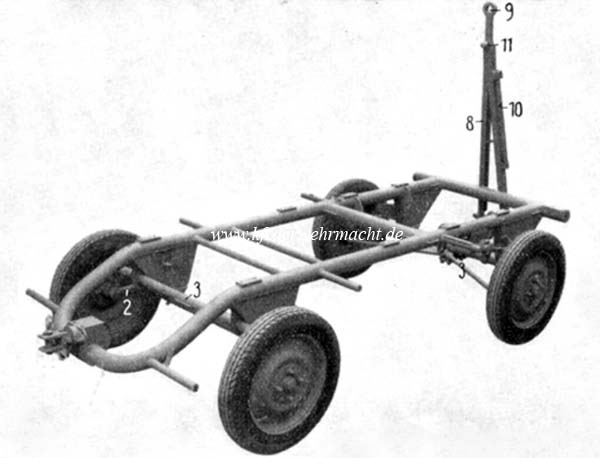

The chassis of the Motorenanwärmer, fahrbar. 2: swing arm, 3: axle tube, 8: drawbar, 9: drawbar loop, 10: cross beam & 11: length of pipe.
(Image from: Vorläufige Beschreibung und Bedienungsvorschrift, February 1941)











- - - - - - - - - - - - - - -
