Bockwagen & Uferbalkenwagen (Pf. 10)





Pf_10_D600

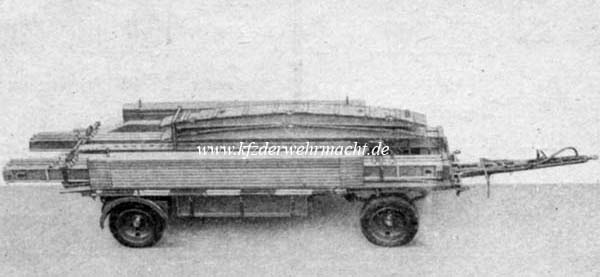

The Pionierfahrzeug 10 (Pf. 10) – engineer vehicle 10 – was used as Bockwagen – supporter wagon – and Uferbalkenwagen – embankment-beam wagon – of the Brückengerät B – bridge equipment B. According to the loading plan, the illustrated wagon is a Uferbalkenwagen (Pf. 10). (Image from D 600)











PF_10_hinter_Latil_M7T1

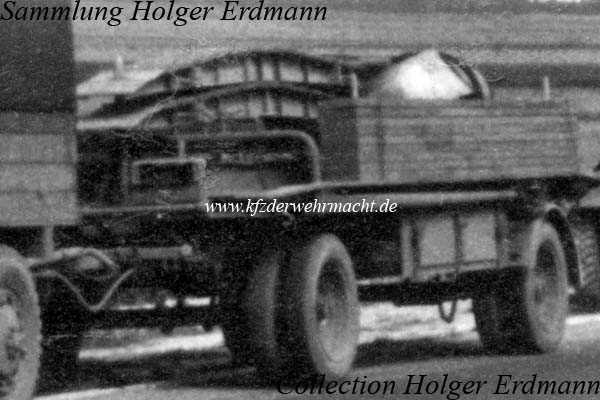

In this photo, one has a clear view on the left side of the Uferbalkenwagen (Pf. 10). The trailer was exactly loaded according to the loading plan.











Pf_10

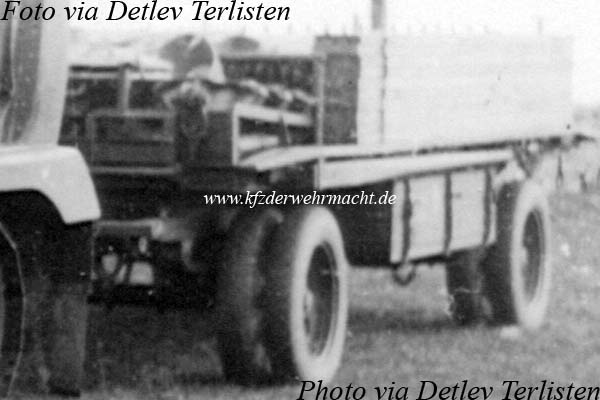

According to the loading plan, no Übergangsschienen – small bridge sections – were carried on the Bockwagen (Pf. 10). Therefore, the illustrated wagon is most probably a Bockwagen (Pf. 10) An exact identification is very difficult because in many cases, the wagons were not loaded according to the loading plan.











- - - - - - - - - - - - - - -
