Maschinengewehrwagen 36 (If. 5) (Vorder- und Hinterwagen)





Bundesarchiv_Bild_146-2005-0176,_Anschluss_sudetendeutscher_Gebiete

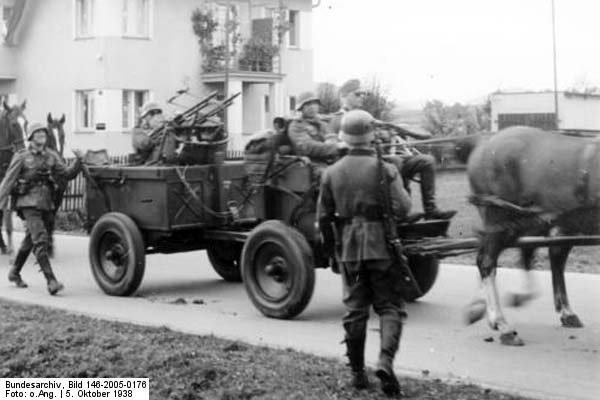

Two MG 34 were transported with the Maschinengewehrwagen 36 – machine gun wagon model 36 – (If. 5). The weapons as well as the accessories and the ammunition were stored on the If. 5. (Photo: German federal archive via Wikimedia Commons; License: Creative Commons BY-SA-3.0-gb)











If_5_&_Reiter

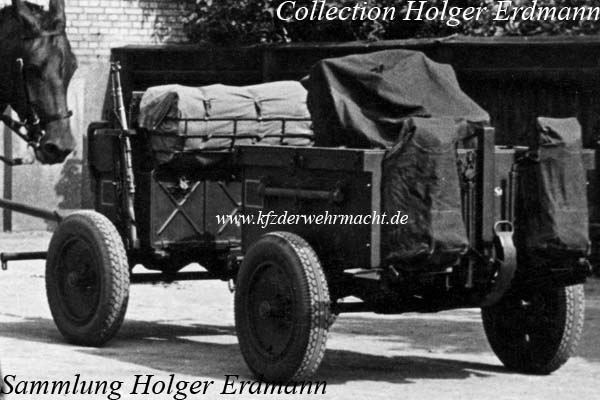

An MG-Lafette 34 – machine gun mount 34 – was carried for each MG 34. Additionally, a Zwillingssockel 36 – pedestal mount 36 for two machine guns – was mounted on the Hinterwagen - rear wagon - of the If. 5. This could be used as anti aircraft weapon.











If_5_in_ausgebauter_Stellung_Winter_HE

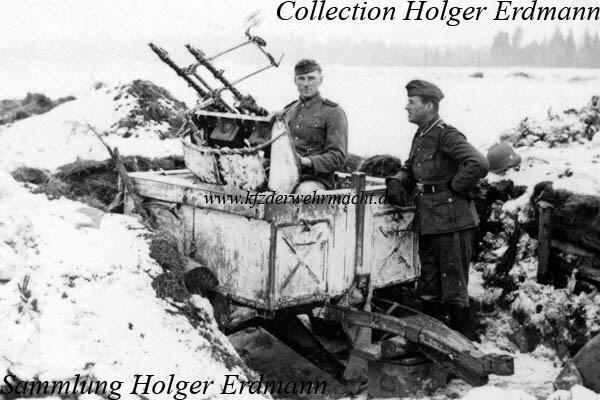

A Hinterwagen in a developed position. From such a position, air targets as well as ground targets could be fought.











- - - - - - - - - - - - - - -
