leichter Messtrupppanzerwagen (Sd. Kfz. 250/12) Ausf. A

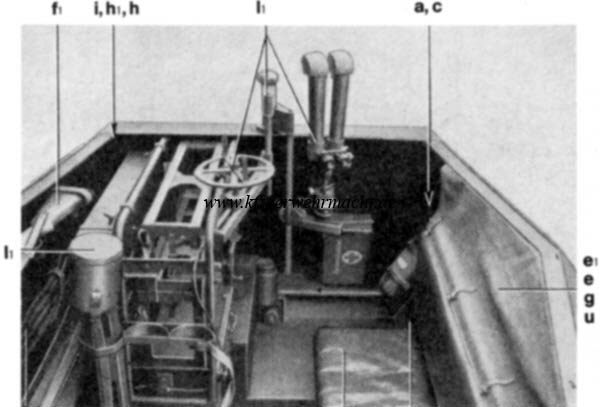

The leichter Messtrupppanzerwagen - light survey party armoured vehicle - (Sd. Kfz. 250/12) was manufactured from 1942 to late 1943. It could be equipped as Batterieführerkw., Vorwarnerkw., Zug- and stellvertretender Zugführerkw. der Schallmessstellenstaffel, Zugführerkw. der Lichtmesstellenstaffel and as Lichtmessstellenkw. (Image from D 672/9)

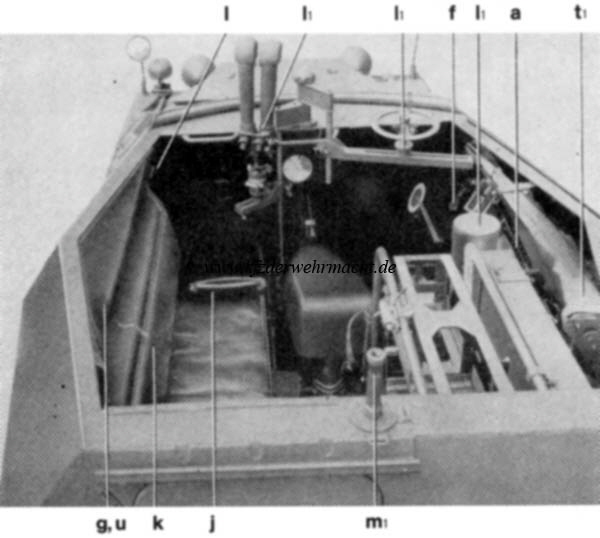

The mounting for the scissors telescope could be mounted at the front and the rear. In the series, the vehicle had an armoured antenna mounting and a Sternantenne d. (Image from D 672/9)

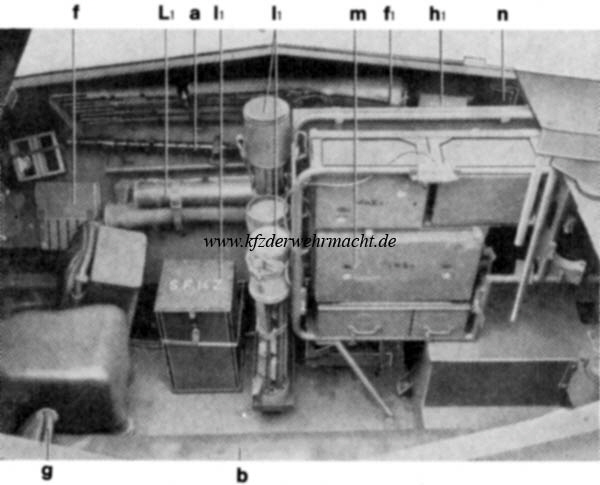

A rack for a radio set equipped with a Fu. 8 S.E. 30 was installed in the interior. Besides, various survey instruments were carried along. (Image from D 672/9)

- - - - - - - - - - - - - - -
